LIFTING MAGNET

1.  Permanent Lifting magnets

PRIME MAGNETIC lifting magnets can are produced for moving, loading and
lifting purpose. They are all powerful and with strong attraction. And all of the l
ifting magnets have CE certification, easy and safe to operate

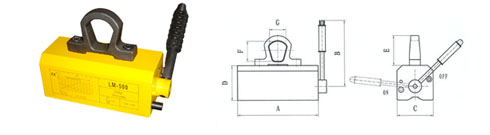

Part No. PRMPLM
0.1T		 PRMPLM
0.3T		 PRMPLM
0.6T		 PRMPLM
1.0T		 PRMPLM
2.0T		 PRMPLM
3.0T		 PRMPLM
6.0T

Rated

Lifting

Strength

(kgf)

 100 300 600 1000 2000 3000 6000

Cylindrical

Lifting

Strength

(kgf)

 50 150 300 500 1000 1500 3000

Max

Pull-off

Strength

(kgf)

 335 1000 2000 3350 6700 10050 20010
A 86 180 250 330 415 470 650
B 150 168 198 262 370 480 670
C 66 80 107 129 170 234 330
D 67 80 103 130 170 190 270
E 63 63 88 88 122 122 130
F 35 35 52 52 64 64 64
G 43 43 60 60 87 87 87

Operation

Temperature

(?)

 <80 <80 <80 <80 <80 <80 <80

Dead

Weight

(kg)

 3 9 20 39 78 160 380
